Microbrewery Beer Turnkey Systerm

Product Description

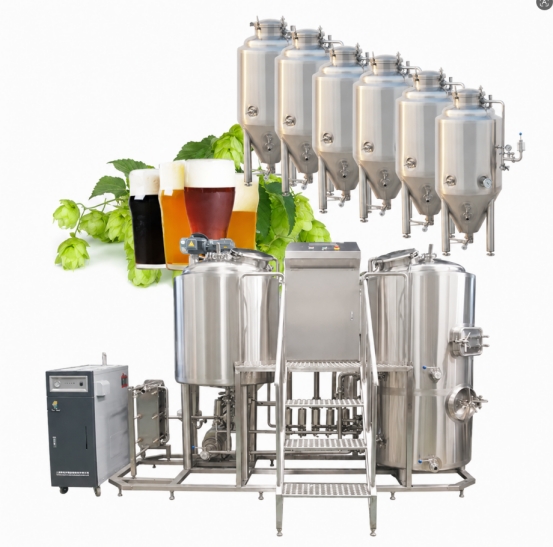

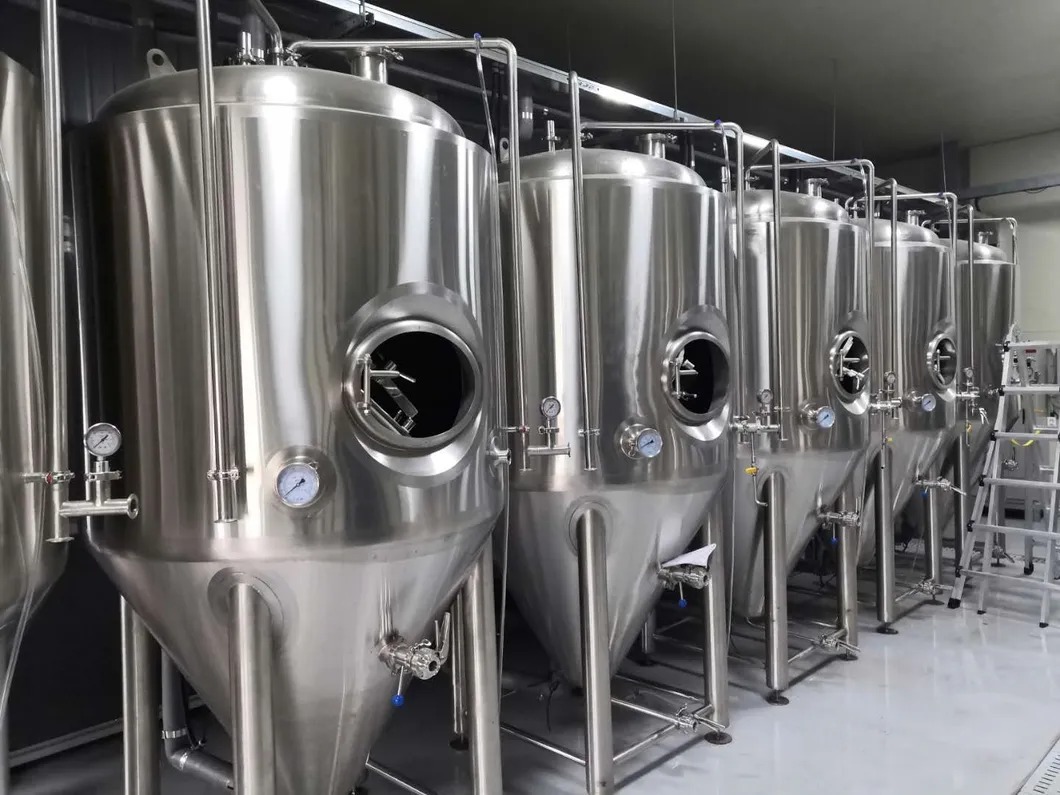

Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

Aelt Stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of Tiantai fermenter is based on our vast beer knowledge and especially the Conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.

Product Specification:

The Output of Brewing Equipment

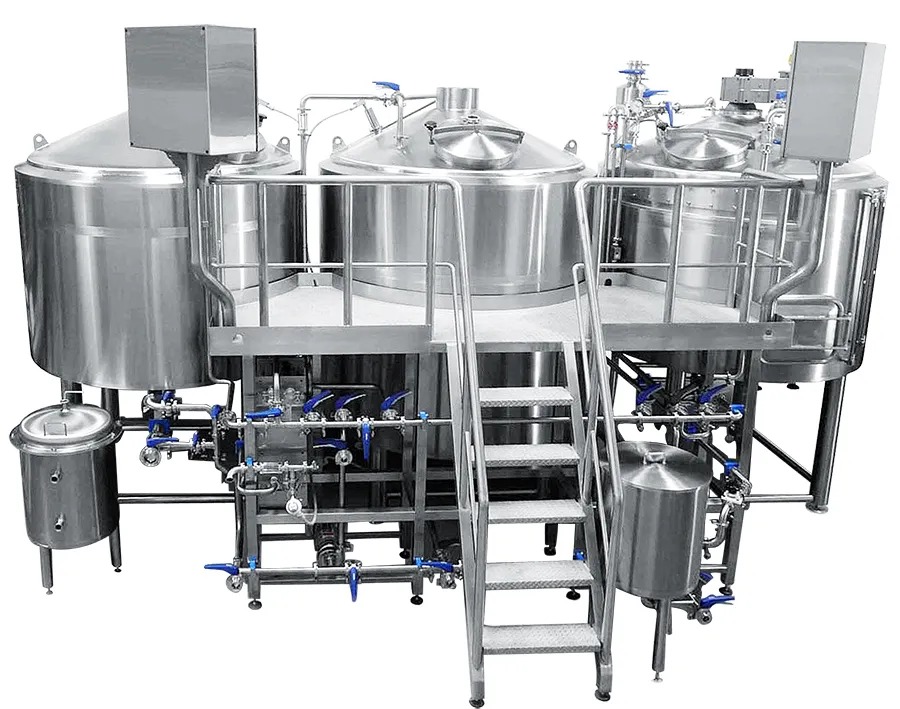

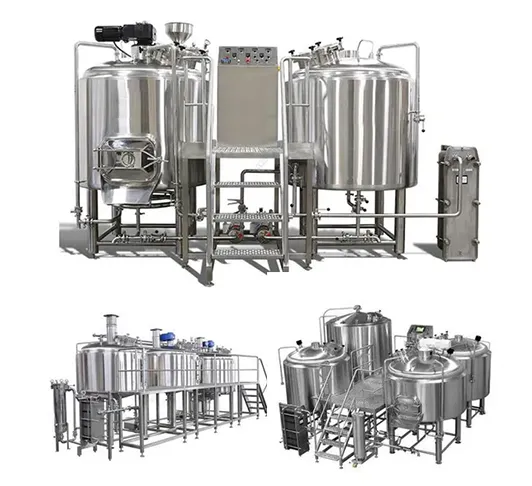

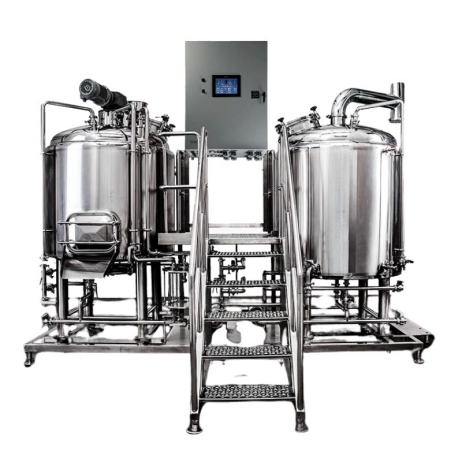

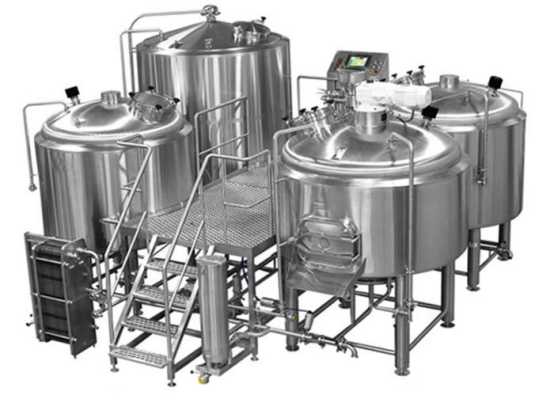

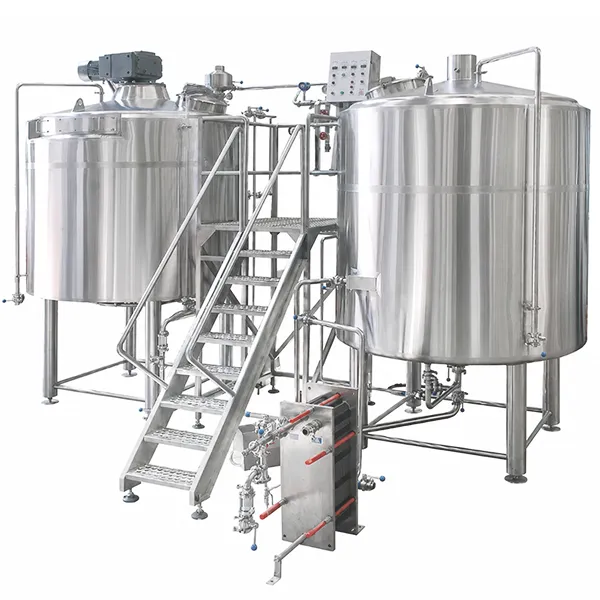

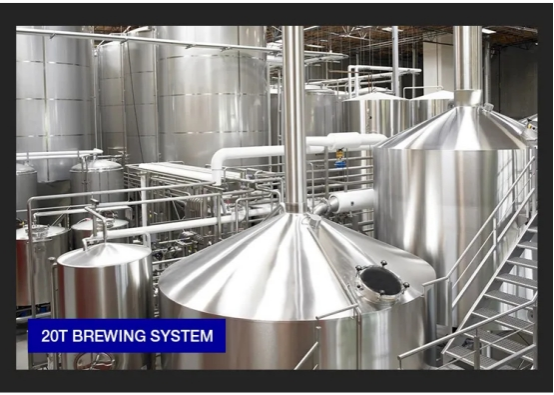

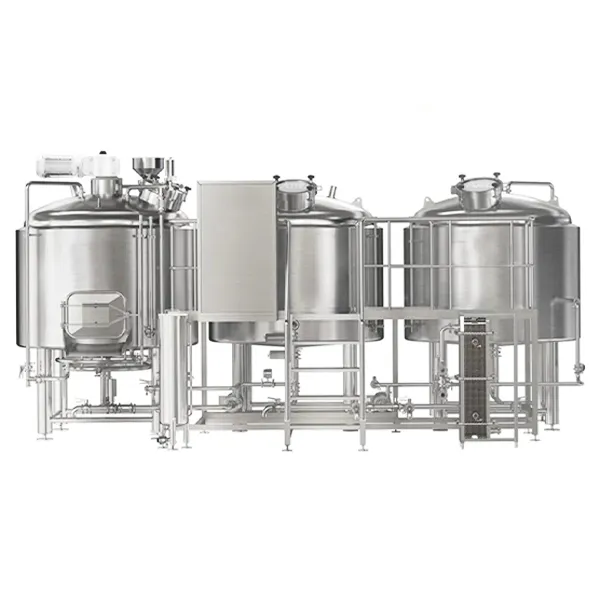

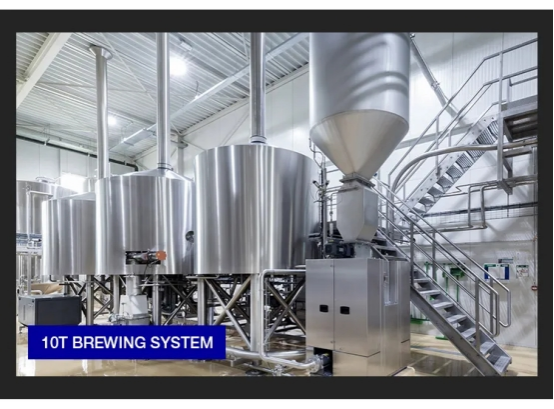

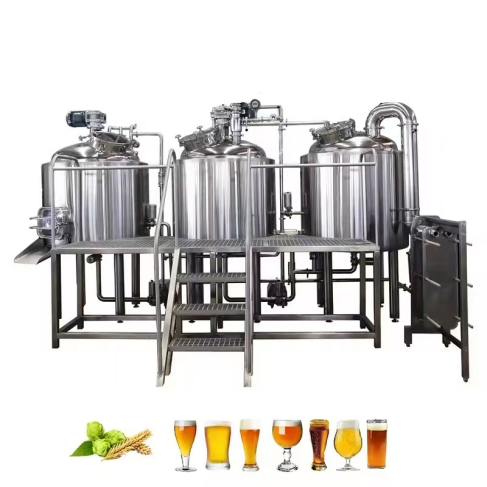

Our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric or steam heat. Semi-automatic control and easy to operate.

PRODUCT FEATURES:

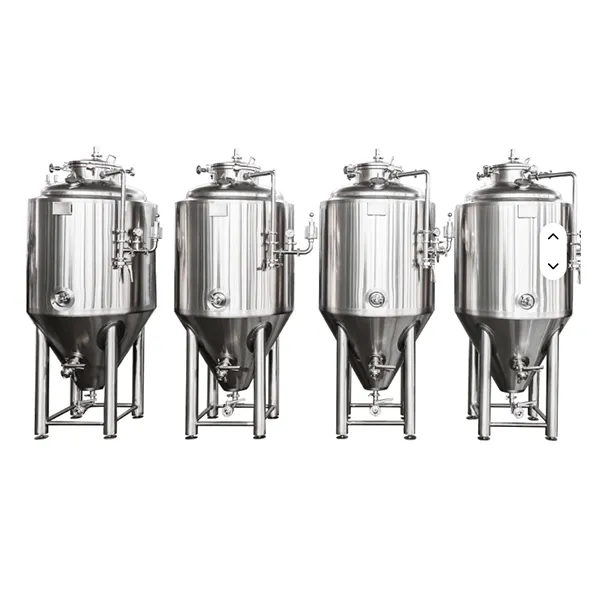

1)Our Fermentation tanks/tun available from 100L to 20000L (1 gallon to 20 gallon) and average 25% Head Space.
2) All tanks have a Dish top,
3)Cylinder body & 60/70° Cone Bottom.
4)Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
5) Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
6)All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
7) We can customize fabricate any tank to meet your brewery's space and height restrictions.

Fermentation tanks body is provided with a sandwich or cold, heating, cooling temperature. Fill the tank with the top and bottom head(or cone) are used spinning R-angle-grinding, polishing tank wall, no health corners, and fully enclosed design ensures that the material is always under a pollution-free status of the mixing, fermentation, air breathing apparatus with hole, CIP cleaning nozzles, manholes and other devices.



Whether you are starting a business in hotel / Investing a brewery in local region / Increasing brewery production / Large brewery upgrading project, COME HERE!  A perfect solution is always for you!

             In Aelt, Quality is our culture!We pay more attention when produce the products!


We'd like to share more information with you about us, about our factory, our products, our rawmaterial, manuracutring progress etc. The quality is not only shows by the tank appearance.
Generally there are four main elements may have influence for the equipment quality: The raw material, the drawing of the quipments, the welding and polishing and the testing.
(1) About the raw material:
About the sanitary stainless steel 304 , we use 3mm interior shell and 2mm exterior shell.And we usually take the samples to test it from the government. We ensure its quality!

(2) About the drawing:
Generally our technician will design the suitable layout accordingly before production once our customers confirmed their orders.
Then our workshop will do the manufacturing strictly according to the detailed drawing. It is normative for every order.

(3) About the welding and polishing:
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder.
The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.2~0.4 μm without dead corner firstly, then do acid pickling and passivation.
Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.

Here are our advantages:
1.We are one of the biggest pharmaceutical, beverage and brewery equipment manufacturers in China with more than 10 years experience.
2.Strong productivity of kinds vessels, we can produce satisfied product according your design.
3.Advanced technology assures strong welds and smooth seams.
4.Attention to detail at every step.
5.OEM / ODM services ,we provide one-stop services from one concept to a real product , and we can offer you very competitive prices

Our Service:
1.Our market team can serve you in 24 hours, so please feel free to contact at your convinent.
2.Our dedicated engineers can supply 2D,3D drawing for you if you needed.
3.If you need to inspect our factory, we can book the hotel and make the invitation letter for you.
4.Our market team with our engineer with more than 10 years experiences together can satisfy you with any technology problem;
5.Customize machine can be offered(voltage,material,dimension,heating source and so on)
After-service:
1.When shippment, we will supply a whole set of parts for backup.
2.If there is any parts damaged, we are surely can send the part to you in 24 hours.
3.Main machine is 3 years warranty, auxiliary machine is 12 months warranty,
4.electrical components is 18 months warranty, life long service.

FAQ:
1.Q: It's the first year(1st year) for you to produce brewing equipments?
A: No. We worked in this business for many years but it's the 1st year to generalize by ******

2.Q:How any years does your warranty ?
A:The main equipment for 3 years, auxiliary ones for 1 year.


3.Q;What's your advantage ?
A:We are pioneer and know this business. Our 3 top-level technicists worked in this business over 10 years, 2 senior engineers worked over 8 years, workers average production experience is 3 years.

4.Q: Can you do OEM or ODM?
A: Yes, we can do.

5.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

6.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.

7.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
Please leave messsage in below to get our latest quote and equipment list for beer filter or turnkey brewery.
