500L Pneumatic Mixing Blending Tank

The 500L Pneumatic Mixing Blending Tank is designed for efficient liquid mixing, blending, and homogenization across food, beverage, pharmaceutical, cosmetic, and chemical industries. Equipped with a reliable air-driven agitator, it ensures consistent product quality, energy-efficient operation, and safe performance in demanding industrial processing environments.

共有：

連絡する

オンライン引合

電子メール：greenyang5888@gmail.com

ワッツアップ：8617791673856

詳細な紹介

100L 200L 300L 500L Stainless steel Pneumatic Mixing Tank for Perfume Alcohol Making Mixing Stirring Pot

Basic Info.

Model NO.	Mixing tank
Application	Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area	Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification	CCC, CE, GOST, ISO, SONCAP
Condition	New
Cooling Method	Air Cooling
Heating Method	Electric Heating
Insulation Material	Fiberglass
Main Material	Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Stainless Steel
Mixing Capacity	1000L & Above
Mixing Drum Shape	Circular Groove
Stirring Type	Diving
Working	Convection Mixer
Agitator Tank	Support Customization of Size
Mixing Tank	Support Customized Processing
Stainless Steel Tank	Can Be Customized According to The Drawings
Stirring Function	Support
Transport Package	Check The Requirements
Specification	Support customization options
Origin	Yangling, China
Production Capacity	50000

Product Description

The mixer is designed with an integrated frame, which is sturdy and durable.
The propeller of the mixer is processed after welding, with high concentricity and easy turning operation.
The mixer tank can be fully stirred using a vortex type, making the mixing time shorter.
The mixer is made of stainless steel, ensuring easy cleaning and rust resistance.
The mixer is suitable for various plastic materials, feed, powder, and chemical industries.

Material					304 or 316 Stainless steel
Insulation					Single layer or with insulation
Top Head type					Dish top, Open lid top, Flat top
Bottom type					Dish bottom, Conical bottom, Flat bottom
Agitator type					impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper
					magnetic mixer, Anchor mixer with scraper
Inside Finsh					Mirror polished Ra<0.4um
Outside Finish					2B or Satin Finish

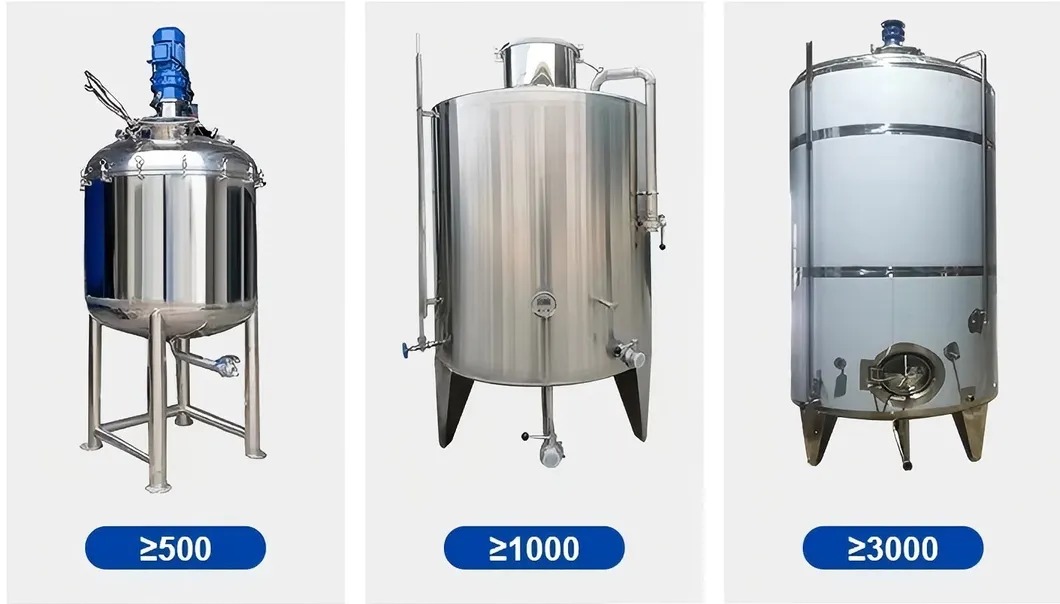

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter(mm)	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height(mm)	600	800	800	800	1000	1220	1220	1500	1500
Motor power(KW)	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working Temperature	<100°C
Accessories	Sanitary manhole,cleaning ball,safety valve,pressure gauge

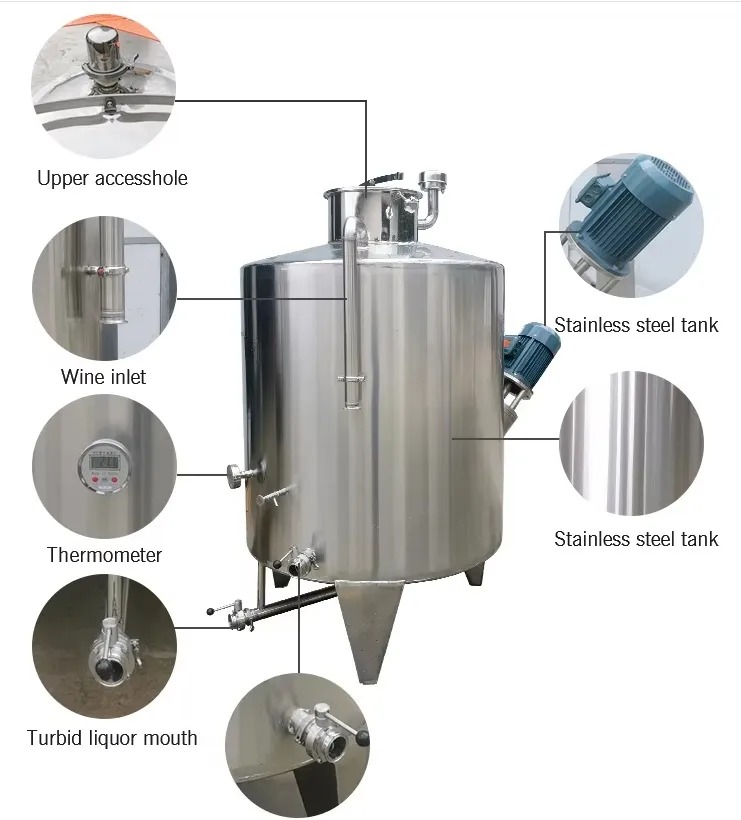

Mixing tank : 1. The container is made of high temperature insulation material, anti-aging polyurethane foam or EPE. 2. The interface adopts international standard ISO fast chuck, and the inner liner is made of imported stainless steel SUS316L or SUS304. The inner surface of the mirror is polished to Ra ≤ 0.4m, and the outer surface is cast matte, glossy, matte sandblasted or cold colored. 3. The mixer seal adopts imported sanitary grade mechanical seal or magnetic stirring seal mixing device, and the mixing speed is optional. 4. Nozzles include Level sensor ports (static pressure, capacitive, non-contact, ultrasonic, glass tube), breathing air ports, thermometers (digital display or dial type), CIP cleaning ports, mirrors, depending on the light, depending on the light (such as endoscope light integration), SIP sterilization ports, liquid outlets and sanitary manholes.

Suitable for industries such as food, dairy, beverages, pharmaceuticals, cosmetics, etc.a. Chemical industry: fats, solvents, resins, paints, pigments, oil agents, etc.b. Food industry: yogurt, ice cream, cheese, soft drinks, jelly, tomato sauce, oil, syrup, chocolate, etc.c. Daily chemical products: facial foam, hair gel, hair dye, toothpaste, shampoo, shoe polish, etc.d. Medications: nutrient solution, traditional Chinese patent medicines and simple preparations, biological products, etc.
